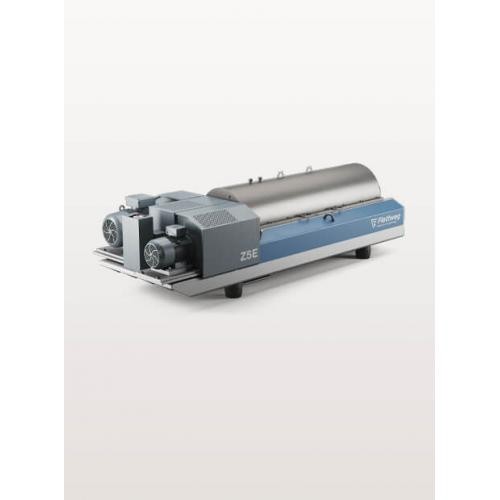

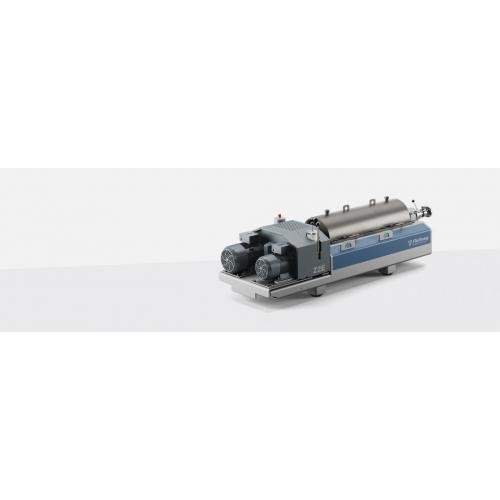

Horizontal screw discharge settling centrifuge

Centrifuge is a horizontal screw discharge, continuous operation of settling equipment. The rotary drum and the spiral variable rotation run at high speed, and the material enters the screw pusher continuously through the feed pipe, and then enters the rotary drum after acceleration. Under the action of centrifugal force field, the heavy solid substance is deposited on the wall of the rotary drum. The solid phase material deposited by the screw pusher is continuously pushed to the cone end of the drum and discharged out of the machine through the slag discharge port. The light liquid phase object is continuously spilled out of the drum through the overflow port of the big end of the drum and discharged out of the machine through the liquid discharge port. The machine is fixed at full speed, continuous feed, separation, discharge. It has the characteristics of compact structure, continuous operation, smooth running, strong adaptability, large production capacity and convenient maintenance. It is suitable for separating suspensions containing solid phase with particle size greater than 0.005mm and concentration range of 2-40%.

Product use

It is suitable for separating suspensions containing solid phase with particle size greater than 0.005mm and concentration range of 2-40%. Widely used in chemical, light industry, pharmaceutical, food, environmental protection and other industries. For example: Glycolic acid, alum, aluminum hydroxide, ammonium bicarbonate, ammonium chloride, ammonium nitrate, ammonium sulfate, anthracene, antibiotics, barium chloride, barium carbonate, barium sulfate, benzene, benzoic acid, blood products, blue alum, borax, Boric acid, lees, calcium carbonate, calcium citrate, calcium hydroxide, calcium nitrate, calcium oxalate, casein, cellulose, chromium yellow, clay, methyl cellulose, coal flotation waste, corundum, cotton wool, corn germ, edible oil, fish processing, mirabite, glutamic acid, hopper, insecticide, diatomite, herbicide, tartaric acid, sodium sulfate, carbon black, etc.

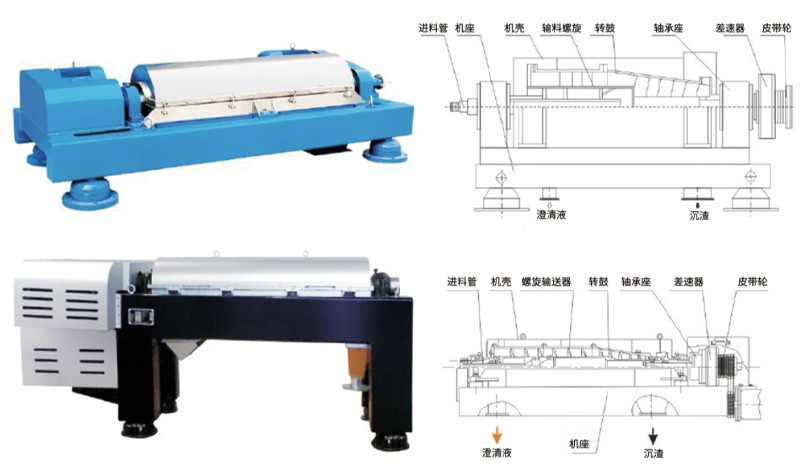

Working principle

When the mixed liquid has a feed port into the inner cavity of the high-speed rotating drum, the solid matter with a larger proportion in the mixed liquid rapidly settles to the inner wall of the drum under the action of centrifugal force, and is discharged from the solid phase outlet of the drum by the screw pusher. At the same time, the liquid phase with smaller proportion forms the inner liquid ring under the action of centrifugal force and is discharged from the drum through the liquid phase overflow port. The rotary drum and the screw pusher run at high speed at the same time. Due to a certain speed difference between the two, the solids settling on the wall of the rotary drum are continuously pushed to the outlet by the screw pusher, and the whole separation process is continuous.
