Plastic bottle packaging linkage line

Detailed information

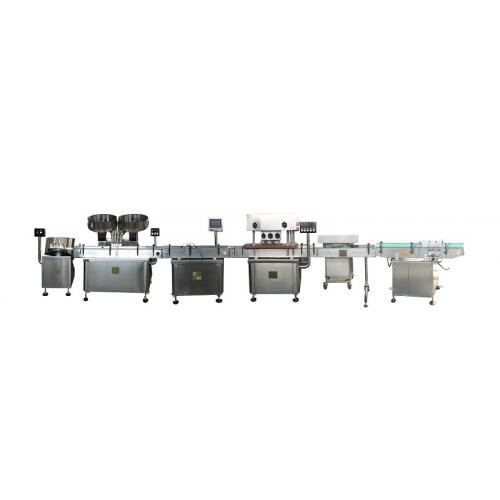

Automatic bottle packaging linkage production line is composed of bottle sorting machine, automatic frequency conversion sheet stuffing machine, high-speed capping machine, aluminum foil sealing machine, self-adhesive labeling machine (or paste labeling machine). It is suitable for counting and filling of tablets, pills, soft and hard capsules and various special-shaped tablets in pharmaceutical, food, chemical and other industries until the whole process of finished product packaging. Each device can be used by a single machine.

Plastic bottle packaging linkage line

1, automatic bottle on the bottle, automatic cover cover, sealing, labeling.

2, loading correct, automatic counting.

3, frequency conversion adjustment, applicable to different production speed requirements, and can realize the automatic stop when the bottle is full, automatic boot when the bottle is short.

4, high-speed capping part does not need to replace the mold and capping head, will not occur hair cap and scratch bottle body.

5, with no bottle no marking paper function, effectively prevent the waste of marking paper.

6. It has the advantages of reasonable structure, simple operation, convenient maintenance and continuous production.

7, the contact with the product is made of stainless steel, in full compliance with GMP standards.

Main technical parameters of plastic bottle packaging linkage line:

Bottle size: 15-150mm

Production capacity: 24-96 bottles/min

Power (voltage) : (380V/220V) 6.5kw

Total length: 8350mm
